Component | Amplifier |
Channels | One |
Input mode | Mono |
Power RMS (1 Ohm) | 1x500W |
Power RMS (2 Ohm) | 1x370W |
Power RMS (4 Ohm) | 1x230W |
Freq. response | 15-300 Hz |
Low Pass Filter | 30-300 Hz |
S/N Ratio (A-weighted) | >92dB |
Bass EQ | 0-12dB @45Hz |
Crossover Slope | 12 dB |
Power Voltage | 10-16V |
REM Voltage | 10-16V |
Input Sensitivity | 0.5-6V |
T.H.D | <0.05% |
Power Fuse | 2x35A |
Damping Factor | > 130 |
RCA Line Out | Yes |
MORE IS ALWAYS BETTER

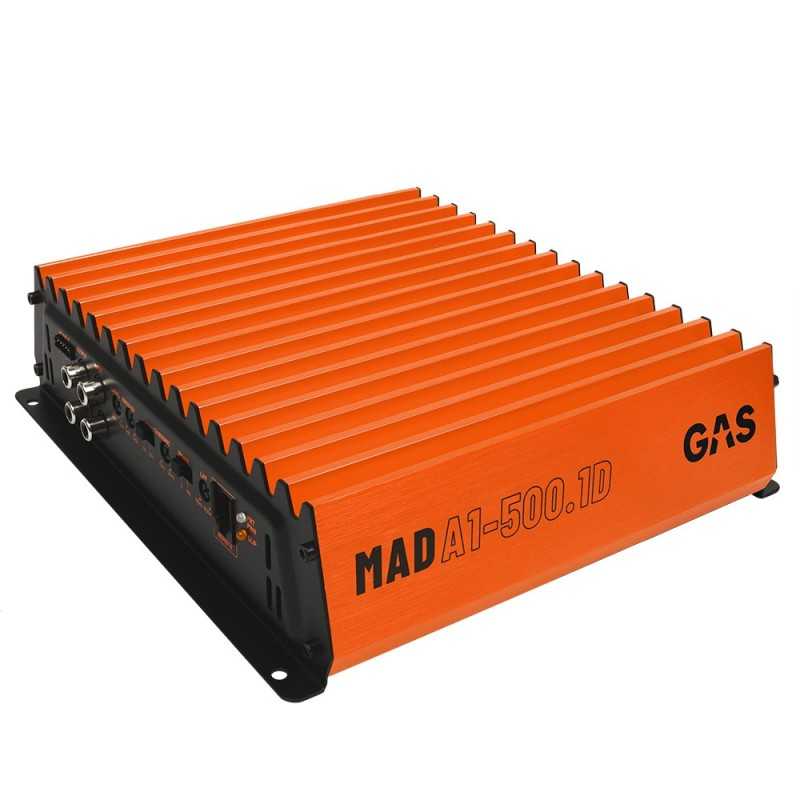

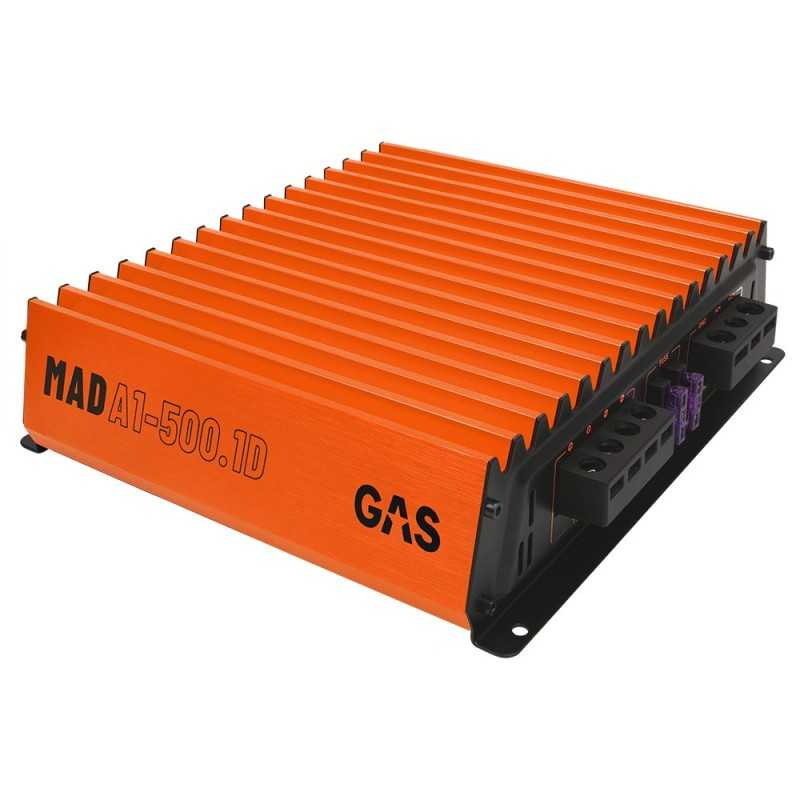

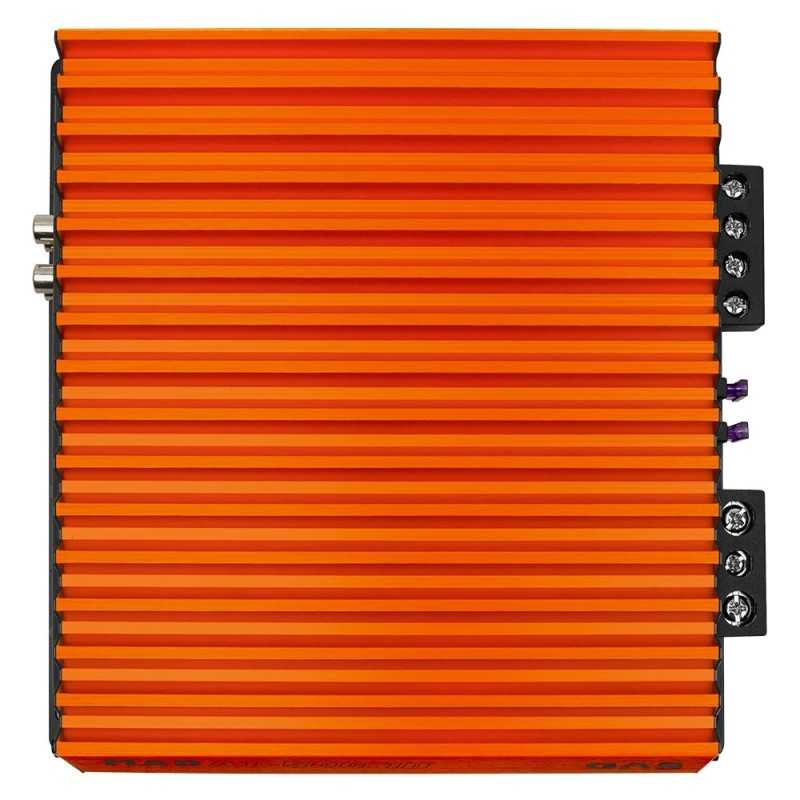

We’re always chasing the high you get from gut-punching bass. To keep the LOUD level high and the heat low, the MAD A1-500.1D features a custom lightweight A-Star heat sink chassis with an increased cooling area. Less material, same efficiency, and an awesome look to top it off.
LEAVE THE HATERS WANTING

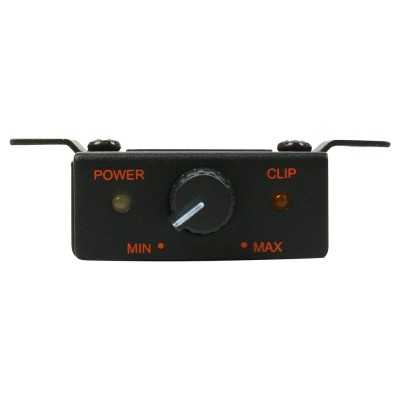

We know how it is. You want to install your amplifier as fast as possible so you can go out and show the world how LOUD your sound system can be. Don’t worry, we got you covered – how about a CLIP function for easy installation that helps you to know when 1% distortion is reached? We’ve even included a CLIP indicator on the bass level remote, AND the latest high level input technology with ATO, automatic turn on. You’re welcome!
PRECISION CONTROL
What’s the difference between your sound system and the rest? Control! The MAD A1-500.1D give you LPF and subsonic 12dB crossover slopes as well as a 0/180 phase shift. Build the system of your dreams, the choice is yours – but make sure to make it LOUD!
PRECISION CONTROL
If you’re a bit trigger happy, things might take a turn for the worse. This is something you want to avoid, right? To make sure your sound system can
handle it, we’ve introduced state of the art protection circuits. This minimizes the risk of DC, thermal overloading and shorting issues!
