Διαιρούμενα ηχεία αυτοκινήτου 6.5" (165mm) 120W DLS Reference RC6.3Q-40

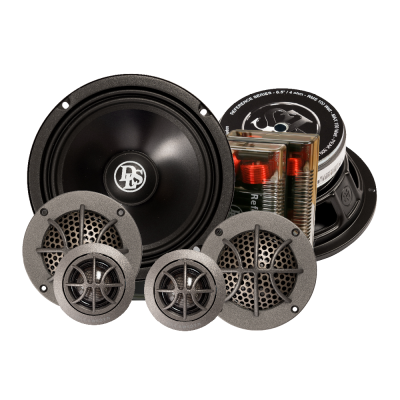

40-year Anniversary 3-way component PENTA set include the woofer technology from the price winning RC6.2 and a carefully refined crossover to perfectly match the 2,5” dome midrange and the 25mm silk dome tweeter.

The advanced crossover also includes separate level switches for midrange and tweeter to perfectly tune the sound depending on the installation areas.

 TECH SPECS AND FEATURES

Crossover Crossover boxes with 12/6/6 db slope

Crossover point (Hz) 550 Hz / 4000 Hz

Size of filter box 145 x 95 x 45 mm ( 5,71 x 3,74 x 1,77″)

Outer diameter  Woofer: 165 mm (6,5″). Mid: 114 mm (4,49″)

Magnet size Woofer: 100 mm (4″). Mid: 60 mm (2,36″)

Mounting depth Woofer: 68 mm ( 2,3″). Mid: 14 mm (0,55″)

Mounting hole Woofer: 145 mm (5,7″). Mid: 80 mm (3,15″)

T/S parameters

single V/C

Fs 64,2 Hz  Re 3,4 Ohm  Qms 7,29

Vas 6,27 liter  Vas 0,22 Cuft  Qes 0,884

Qts 0,79  Sd cm²  BL 6,59
