Διαιρούμενα ηχεία αυτοκινήτου 6.5" (165mm) 120W DLS Ultimate CK-UPi36

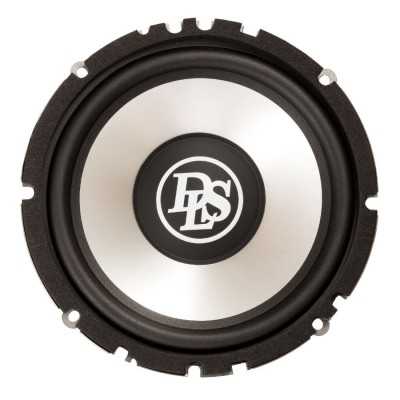

The Ultimate compact 16cm (6,5”) 3-way kit! Hybrid Aluminum cone and a powerful neodymium magnet provide all the bass, the dome midrange includes an acoustic resonance chamber for extended range and the advanced silk dome tweeter guarantee transparent but yet detailed treble.

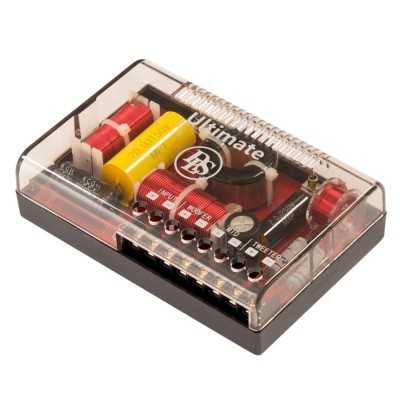

All can be fine-tuned in the crossover with separate level switches for midrange and tweeter. Angled/recessed cups for the tweeters & woofer grilles included.

SPECIFICATIONS

Woofer size 16,5 cm (6,5″)

Midrange size 63 mm (2,5″)

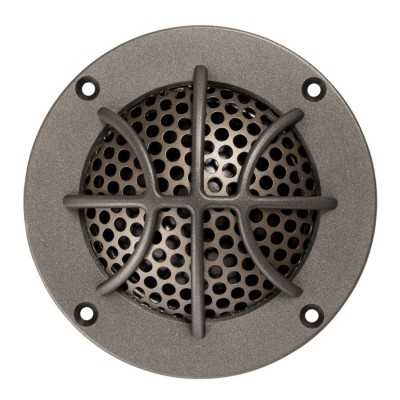

Tweeter RC25, 25 mm (1,1″) silk dome tweeter

Power handling capacity 120 W RMS / 200 W max

Impedance 4 ohm

Frequency range 50 – 20.000 Hz

Sensitivity 84,2 dB (1W/1m)

Crossover Filter box with 12/6/6/12 dB slope

Crossover point (Hz) 500 Hz / 5000 Hz

Size of filter box 145 x 95 x 38 mm ( 5,71 x 3,74 x 1,5″)

Outer diameter of woofer Woofer: 165 mm (6,5″) Mid: 100 mm (3,94″)

Magnet size 58 mm (2,28″) neodymium

Mounting depth Woofer: 60 mm ( 2,36″) Mid: 29 mm (1,14″)

Mounting hole Woofer: 145 mm (5,7″) Mid: 80 mm (3,15″)
