Διαιρούμενα ηχεία αυτοκινήτου 6.5" (165mm) 120W DLS Ultimate CK-UPi6

The Ultimate compact 16cm (6,5”) 2-way kit with a Hybrid Aluminum cone and a powerful neodymium magnet produce fundamental bass & excellent resolution. A special acoustic resistance filter enhance bass and increase power-handling in free air.

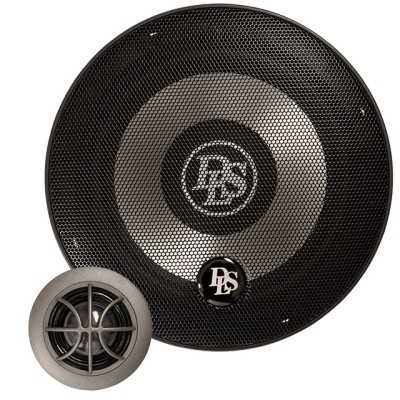

Low ESR crossovers with ribbons coils provide unsurpassed transparent midrange and 28 mm tweeters with copper rings reproduce sparkling highs. Angled/recessed cups for the tweeters & woofer grilles included.

SPECIFICATIONS

Outer diameter of woofer 165 mm (6,5″)

Tweeter RC28, 28 mm silk dome tweeter

Power handling capacity 120 W RMS / 200 W max / 300 W peak power

Impedance 4 ohm

Frequency range 50 – 25 000 Hz

Sensitivity 84,2 dB (1W/1m)

Crossover Box filter with slope LP: 6 dB, HP: 12 dB

Crossover point (Hz) 5000 Hz

Size of filter box 145 x 95 x 45 mm ( 5,71 x 3,74 x 1,77″)

Woofer size 16,5 cm (6,5″)

Magnet size 58 mm (2,28″) neodymium

Mounting depth 60 mm (2,36″)

Mounting hole 145 mm (5,7″)
